MEP for Multifamily: How One Unit Multiplies Across the Building

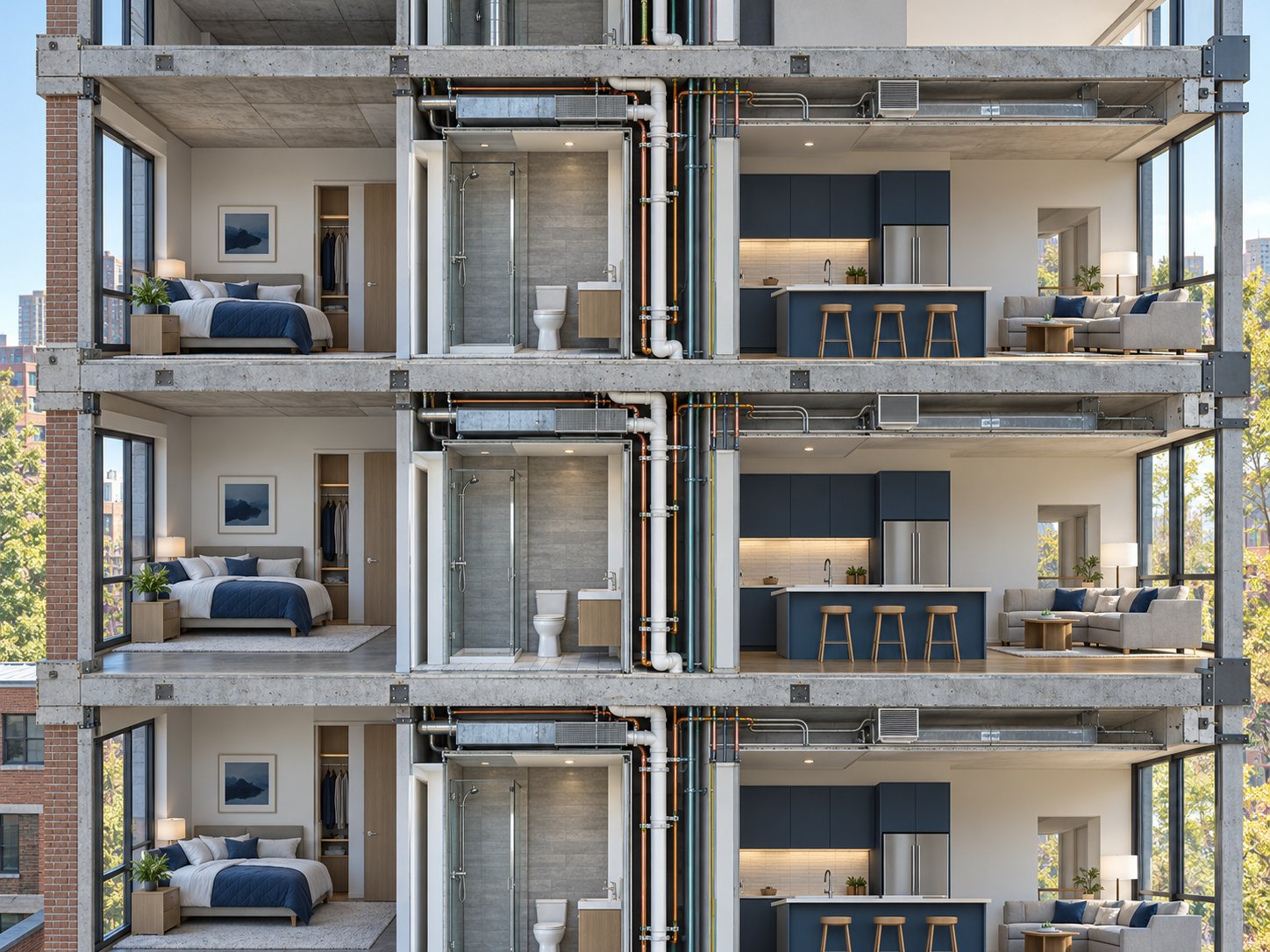

The Stacked Riser Is the Backbone

Multifamily MEP depends on stacked risers: plumbing, mechanical, and electrical runs aligned so the same layout repeats floor to floor. Clean stacking makes construction faster and more predictable; shifts create offsets, coordination, and cost. That is why MEP input matters early.

Mechanical, Electrical & Plumbing in Multifamily: What Drives Each

Mechanical. Unit comfort usually comes from individually controllable systems (heat pumps, fan coils, or PTAC/VTAC), balanced against central efficiency. Central vs. distributed is the first fork: individual heat pumps or PTAC/VTAC give tenants control and simplify metering, while a central system with fan coils can be more efficient but concentrates risk. Two things matter beyond the unit: compartmentalization — air-sealing each unit’s envelope so stack effect and unit-to-unit transfer are controlled at the boundary, with outdoor air often ducted directly to each unit, since compartmentalization works against relying on corridor-supplied air — and corridor ventilation and pressurization for the common spaces. Plus acoustics: equipment placement and routing kept away from bedrooms, because in multifamily your comfort problem is also your neighbor’s noise problem. HVAC design here leans on the ASHRAE 62.1 / 62.2 split where the adopted code references it: ASHRAE 62.2 covers nontransient dwelling units — a whole-unit mechanical rate plus local exhaust at kitchens and baths — while 62.1 covers corridors and common areas. Some jurisdictions use the mechanical code's own dwelling-unit rates instead, and editions before 2016 moved units above three stories to 62.1, so confirm the adopted code and edition. And increasingly a local electrification or heat-pump ordinance sets the equipment class before comfort even enters the conversation. Ducted mini-splits, VRF, and packaged units each carry different service-closet and shaft implications, and locking that decision before permit submission keeps the mechanical shaft from becoming the thing that forces a redesign of everything routed around it.

Electrical. Electrical design for the service leans on NEC Article 220 demand factors — the optional multifamily method (220.84, for three or more units that meet its electric cooking and heating or cooling conditions, with demand factors set by the number of dwelling units) exists precisely because apartments rarely all peak at once. Individual units are calculated by the standard method or the 220.82 optional method. Get the diversity assumption wrong and you either oversize the service (wasted money) or undersize it (a redesign at plan check). Layer on house loads (elevators, corridor lighting, amenities, garage), meter stacks, unit panels, and increasingly EV-ready and EV-capable parking per local ordinance, and getting the diversity and ordinance requirements right the first time through the design avoids a costly service redesign later. Panel schedules, branch-circuit protection (AFCI/GFCI per dwelling-unit requirements), and where the utility transformer and switchgear actually land on the site plan all fall out of that early sizing decision.

Plumbing. Plumbing design beyond the stacked risers centers on domestic hot water — sized and recirculated so the unit farthest from the heater isn't stuck with a cold morning shower. Domestic water itself is sized off fixture-unit demand per the adopted code (IPC or UPC / Hunter's-curve basis, or the Water Demand Calculator under UPC Appendix M where the jurisdiction accepts it), and gas load calcs, submetering strategy, and storm/sanitary coordination at the podium level round it out — plus sewage ejectors and sump pumps where below-grade fixtures and garage drains can't drain by gravity, and backwater valves where fixtures sit below the next upstream sewer manhole cover (judged by the floor elevation of the fixtures under both the current IPC and UPC, subject to local amendments), and ASHRAE 188 water-management considerations, particularly where domestic hot water is centralized. On larger projects, a dedicated amenity-level kitchen or laundry room adds its own fixture-unit load on top of the residential base, while backflow assemblies and the recirculation loop add pressure loss and heat loss the design has to carry — easy to miss if the amenity floor is treated as an afterthought.

What Drives Multifamily MEP Cost

The MEP number on a multifamily project is driven less by square footage than by how cleanly the building repeats. A few levers move it most:

Two projects with identical square footage and unit count can differ materially in MEP cost depending on how these five levers shake out. None of them are line items you negotiate late — they're decisions MEP wants a voice in during schematic design, when moving a riser still costs relatively little.

The 5 Multifamily MEP Mistakes That Repeat

Some of these cost money; others cost trust with the plan reviewer — and on a repeat-heavy building type, both compound fast. Because everything multiplies, these are the ones that hurt at scale:

1. Misaligned risers — a stack that jogs floor to floor turns a repeatable install into a custom one, every level.
2. Unbalanced hot-water recirculation — if the far unit loses, it can lose in every stack, every morning.
3. Fan-coil / equipment placed near bedrooms — one acoustic complaint can become the same complaint on every floor.
4. Optimistic electrical diversity — get the demand factor wrong and the service redesign lands late.
5. Uncoordinated podium & garage — CO ventilation, transfer-level routing, and storm/sanitary are where late clashes concentrate.

How Fire Protection, Low-Voltage & BIM Coordinate

Not everything on a multifamily set is MEP's to design — but all of it has to fit together, and that coordination is where sets pass or fail:

• Fire sprinklers, standpipes, and suppression are designed by a fire-protection engineer or licensed sprinkler contractor (by others), typically to NFPA standards. MEP's job is to coordinate ceiling space, riser locations, and the electrical monitoring/alarm interface so nothing clashes.
• Fire alarm & low-voltage (access control, data) share the same congested ceilings and shafts as ductwork and piping — clash-free routing is the goal.
• BIM / Revit coordination is how that gets proven before construction: a modeled, clash-checked set helps the trades install the repeat detail once, correctly, on every floor. On a hundred-unit stack, a clash caught in the model can take less effort to resolve than the same clash caught in the field, which can require rework on every affected floor.

Getting these interfaces clean is exactly why MEP coordination is especially important where multifamily details repeat — and why we structure MEP design phases (SD/DD/CD) around resolving these interfaces early, while changes are still cheap.
