Sizing Domestic Water Without Oversizing: Fixture Units, Hunter's Curve, and What's Changing

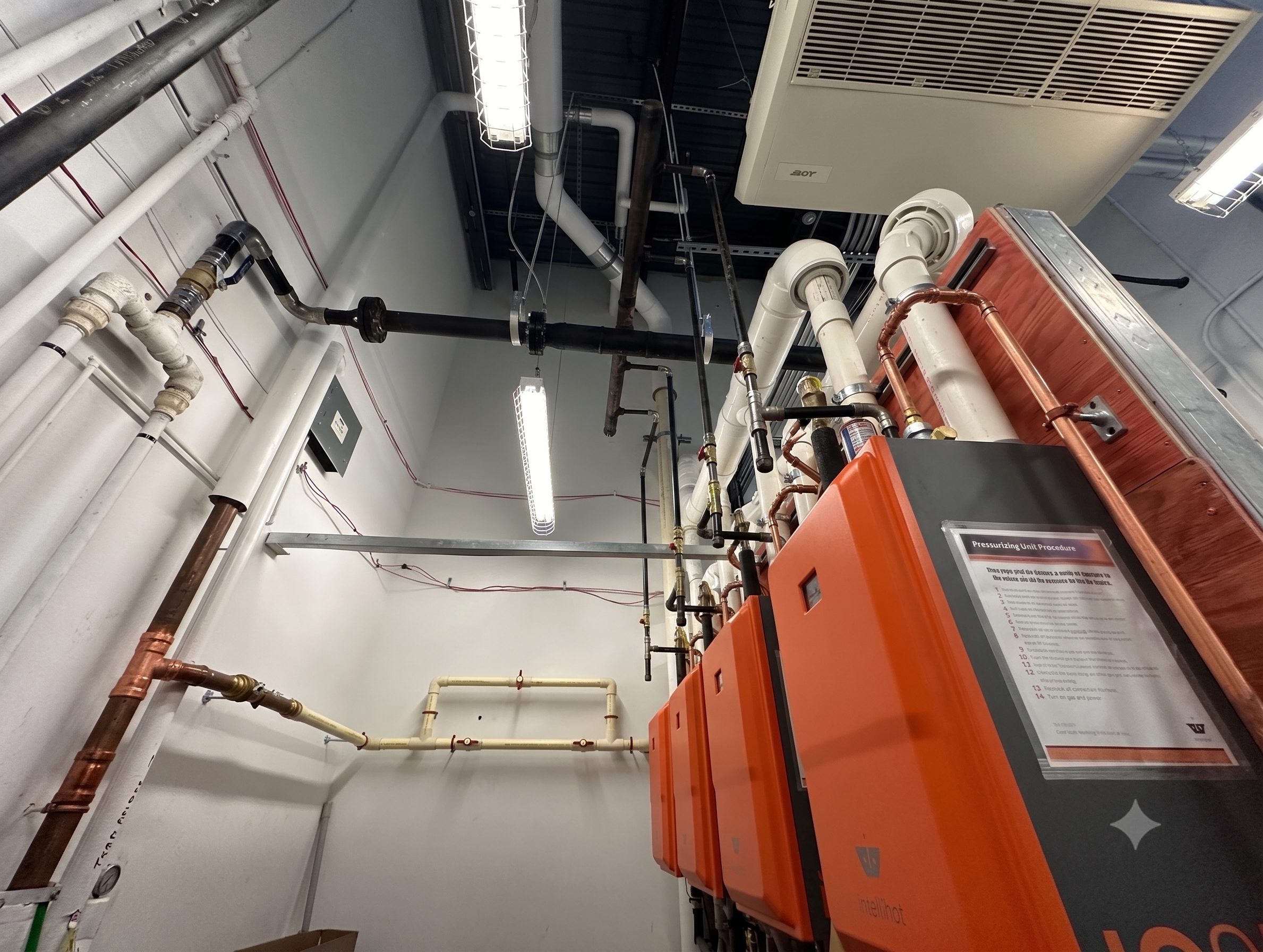

Domestic water sizing is the process of selecting pipe sizes that deliver the required flow and pressure to every fixture while holding velocity, pressure loss, water age, and material cost in check. The classic tool is Hunter's curve — but modern low-flow fixtures have quietly changed the math, which is exactly where this gets interesting. Ask two people why the hot water takes forever to reach the far unit, and one will blame the plumber. Often it's the sizing. Domestic water piping that's oversized doesn't just cost more in material — it slows delivery, wastes water and energy waiting for hot water to arrive, and can invite water-quality problems in pipes that rarely turn over. Undersized, and you get pressure complaints and fixtures that starve at peak. Getting it right is a real piece of engineering, and it rests on a method almost a century old that's now being rethought.
Domestic water sizing assigns each fixture a water supply fixture unit (WSFU) value, totals them, and converts that total to a probable peak flow in GPM using Hunter’s curve — which accounts for the fact that not every fixture runs at once. That flow, plus a pressure budget from the meter to the worst-case fixture, is what actually sizes the pipe. Modern low-flow fixtures make Hunter’s curve over-predict, which the newer Water Demand Calculator (WDC) corrects.
Fixture Units: A Probability System, Not a Flow Measurement
The foundation is the water supply fixture unit (WSFU). A fixture unit isn't gallons per minute — it's a design factor that represents the probable load a fixture places on the system, accounting for how much water it uses and how often. A lavatory used briefly counts for less than a flush valve that dumps a lot of water fast.
The reason the whole system exists is diversity: not every fixture runs at once. If you sized pipe assuming every faucet and flush valve in a building opened simultaneously, you'd wildly oversize everything. Fixture units are a probability-based way to model realistic peak demand instead of worst-case-everything.
The method traces to Dr. Roy B. Hunter in the 1940s, and it's still the backbone of the IPC and UPC sizing provisions today.
Hunter's Curve: From Fixture Units to Gallons Per Minute
Once you've assigned WSFU values to every fixture and summed them for a branch or the whole system, you convert that total to a peak flow in GPM using Hunter's curve (published in the code as a demand-load table). The curve is deliberately not linear — it flattens as fixture counts rise, because the more fixtures you have, the less likely they all peak together.
That non-linearity is the whole point. As a rough sense of the shape: a small count like 10 fixture units corresponds to only single-digit GPM, while several hundred fixture units still land at a demand far below the arithmetic sum of every fixture's flow. You size cold and hot supply (and drainage, using drainage fixture units) from these demands, then pick pipe sizes that hold velocity and friction loss in range per the code tables and the available pressure.
The Eight-Step Arc of a Supply Design
In practice a domestic water design runs about like this: establish available pressure; assign fixture units; total them for cold, hot, and each branch; convert to peak GPM via the demand curve; account for elevation and pressure losses (meter, backflow, fittings); set a velocity limit to control noise and erosion; size the pipe from the code tables; and, where the building is tall or the far run is long, add a booster or recirculation strategy so the last fixture still performs. Miss a step — forget the pressure loss through the backflow preventer, say — and the far fixture pays for it. None of these steps happen once and lock — the pressure assumptions get firmer and the pipe sizes get closer to final as the design itself moves from SD through DD and CD.
The Pressure Budget: From the Meter to the Worst-Case Fixture
Flow tells you how much water; the pressure budget tells you whether it actually arrives. Sizing pipe on flow alone, without closing a pressure budget, is how systems end up starved at the top floor or the far end of a run. The budget starts with the available pressure at the water meter and subtracts everything standing between it and the hardest-to-serve fixture:
| Budget line | What it accounts for |
|---|---|
| Static pressure & elevation | Elevation reduces static pressure by roughly 0.43 psi for every foot the fixture sits above the meter — about 4.3 psi per floor. |
| Water meter & backflow preventer | Both take a real, sometimes large, pressure hit as water passes through. |
| Friction loss in the pipe | A function of flow, pipe size, and length — coupled directly to the sizing decision itself. |
| Fittings & valves | Every elbow, tee, and valve adds a small loss that accumulates over a long run. |
| Required residual pressure | What has to be left over at the fixture (or flush valve) for it to actually work. |
Add it all up and compare the total to available pressure. If the budget doesn't close, the fix isn't always bigger pipe — it may be a booster pump, a smarter route, or splitting the building into pressure zones, all covered below.
Velocity: The Quiet Constraint
Pipe can't just be sized for pressure — pipe velocity governs from the other side. Push water too fast and you get noise, water hammer, and, over years, erosion of the pipe interior, especially in copper hot-water lines. Run it too slow — which is exactly what oversized pipe does — and you trade those problems for a different one: water sits too long.
Designers hold velocity within accepted ranges, typically a bit lower on hot water than cold because hot water accelerates erosion, and that ceiling is often what actually sets the minimum pipe size once flow and pressure are already satisfied. Velocity is the constraint that quietly keeps a system quiet — and it's one more reason "bigger to be safe" is usually wrong.
When Pressure Runs Out: Booster Pumps, PRVs, and Pressure Zones
When the pressure budget won't close — tall buildings, low street pressure, long runs — the design adds equipment rather than just bigger pipe. This is where domestic water design stops being a pipe-size table and becomes a system, and it shows up constantly on commercial & office high-rises where street pressure alone never reaches the top floor.
| Equipment | What it solves |
|---|---|
| Booster pump | Raises system pressure where the utility can't reach the top floors on its own. Sized to the peak GPM and the pressure deficit; variable-speed booster pumps match output to actual demand instead of running full-speed against a bypass. |
| Pressure-reducing valve (PRV) | Protects fixtures where pressure is too high — the low floors of a boosted high-rise, or a high-static site — cutting leaks and water hammer. |
| Pressure zone | Splits a tall building into vertical zones so no fixture sees too much or too little, each fed and regulated to a target range. |
| Expansion tank | Absorbs thermal expansion on the hot-water side of a zoned or boosted system so pressure doesn't spike as water heats. |
None of this lives in isolation — it takes the same MEP coordination as everything else on the set: boosters and expansion tanks need mechanical room space and structural support, PRVs need access for service, and pressure zones need to be drawn consistently across the riser diagram from basement to roof.
What's Changing: Hunter's Curve Is Aging
Here's the part that separates a current designer from one running on autopilot. Hunter developed his curve when fixtures used far more water than they do now. Today's low-flow toilets, faucets, and flush valves use a fraction of that, which means the classic curve tends to over-predict demand for modern buildings — leading to oversized pipe, slower hot-water delivery, and stagnation concerns.
The industry response is the Water Demand Calculator, developed through IAPMO/ASPE research and now referenced in code (for example, as an appendix method in the UPC). It uses updated statistical methods and real modern fixture flow rates to produce more realistic peak demands, particularly for residential and multifamily work. It isn't universally adopted yet, and jurisdictions vary — but knowing when the traditional curve oversizes, and when a modern method is accepted, is exactly the judgment that keeps a system right-sized. Confirm which sizing method your jurisdiction accepts before you rely on it.
Water Age: The Modern Reason Not to Oversize
Here's the argument that makes this whole topic current. Old habits oversized pipe "to be safe." But low-flow fixtures mean less water moves through the same pipe, so oversized pipe today just means water sits longer. That rising water age is a water-quality problem, not just an efficiency one: disinfectant residual decays over time, and stagnant water sitting in oversized mains and dead legs is exactly the condition associated with Legionella growth. It's a particularly sharp concern on healthcare & medical projects, where immunocompromised occupants make water-quality margin non-negotiable.
So the modern driver to right-size — not upsize — domestic water isn't just cost or velocity, it's water quality. It's why the Water Demand Calculator, which reflects low-flow reality better than Hunter's curve, matters beyond academic accuracy: sizing closer to real demand keeps water fresher. Minimizing dead legs, sizing recirculation properly, and skipping the old "oversize for safety" habit are health decisions now, not just efficiency ones.
Hot-Water Recirculation, and a Quick Worked Example
Recirculation keeps hot water moving in a loop so the fixture farthest from the heater isn't stuck running cold water down the drain waiting for hot to arrive. A recirculation pump is sized for the loop's heat loss, not fixture demand, and balanced so every branch gets flow. It interacts directly with water age too — a well-designed loop keeps water moving and fresh, while a dead-legged one invites stagnation.
Worked example (apartment stack): total the WSFU for the units on the stack, convert to a peak GPM using Hunter's curve (or the Water Demand Calculator for a low-flow building, which usually lands lower and more realistic), then build the pressure budget from the meter up the stack — elevation and static pressure loss, the meter and backflow preventer, friction loss, and fitting losses. Size the pipe to satisfy flow, velocity, and the residual pressure needed at the top unit. If the budget doesn't close at the top floor, that's your booster-pump trigger, found on paper against the riser diagram — not after a tenant on a multifamily project complains about a weak top-floor shower.
How CoreX Handles It
We size domestic water to a defensible demand, not a habit. Fixture units assigned per the adopted code, converted through the correct demand method, with pressure losses and velocity limits actually accounted for — and where a project's fixtures and jurisdiction make the traditional curve oversize, we evaluate whether a modern method like the Water Demand Calculator applies. The result is piping that delivers at peak without the oversizing that slows hot water and wastes it. On multifamily especially, that's the difference between a system that performs on every floor and one where the top unit always loses.
A pattern we see on multifamily mid-rise work: running the numbers through the Water Demand Calculator instead of Hunter's curve often drops a riser a full pipe size — less material, and less standing water sitting in the pipe for the top-floor units.
Related: DWV Sizing (Drainage Fixture Units, Slope & Venting) · MEP Coordination Best Practices · How to Read MEP Drawings
If your plumbing production needs a right-sized hand, we carry it under your seal. See our plumbing services and Residential & Multi-Family, or schedule a scope call.
Common Questions
A water supply fixture unit (WSFU) isn’t a flow measurement — it’s a design factor representing the probable load a fixture places on the system, based on how much water it uses and how often. Fixture units let designers model realistic peak demand instead of assuming every fixture runs at once.
Once fixture units are totaled for a branch or system, Hunter’s curve (published in the code as a demand-load table) converts that total into a peak flow in gallons per minute. The curve flattens as fixture counts rise, because the more fixtures a system has, the less likely they all peak together — and that demand is what sizes the pipe.
For many modern buildings, yes. Hunter’s curve predates today’s low-flow fixtures and can over-predict demand, leading to oversized pipe and slower hot-water delivery. The Water Demand Calculator uses updated statistical methods and real modern fixture flow rates, and it’s gaining code recognition — but it isn’t universally adopted, so confirm which method your jurisdiction accepts.
In buildings with low-flow fixtures. Because Hunter’s curve was calibrated on older, higher-flow fixtures, it over-predicts peak demand in buildings built around today’s low-flow toilets, faucets, and flush valves — which is exactly what leads to oversized pipe.
Available pressure is the water pressure on hand at the meter or service entrance to the building. A pressure budget subtracts every loss between the meter and the worst-case fixture — elevation, the meter and backflow preventer, friction loss, and fittings — from that available pressure, and compares what’s left to the residual pressure the fixture actually needs.
By summing static pressure loss from elevation, the loss through the water meter and backflow preventer, friction loss in the pipe itself (a function of flow, pipe size, and length), and losses through fittings and valves, then comparing the total against available pressure at the meter.
When available pressure can’t meet the residual pressure needed at the highest or farthest fixture once every loss in the pressure budget is accounted for — common in high-rises and on services with low street pressure.
Design velocities are held within accepted ranges, typically a bit lower on hot water than cold because hot water accelerates erosion, to avoid noise, water hammer, and pipe erosion. That velocity ceiling often ends up setting the minimum pipe size once flow and pressure are already satisfied.
They cost more in material, and because low-flow fixtures move less water through the same pipe, oversized pipe raises water age — letting disinfectant residual decay and creating the stagnation associated with Legionella growth.
Usually a fixture far from the water heater with no recirculation loop, or a poorly balanced one, so it runs cold water down the drain before hot water arrives. A properly sized and balanced recirculation loop fixes it.
A pressure-reducing valve, used where pressure is too high — the low floors of a boosted high-rise, or a high-static site — to protect fixtures and reduce leaks and water hammer.
